Governing Microsoft Foundry: four ways to call it, and only three can be governed

There are four ways to call a model on Microsoft Foundry. They look interchangeable in the portal. They are not interchangeable at all, and the difference is not about features — it is about who holds the model client.

Hold it yourself and every governance control you can name works, because they all attach at that one seam. Hand it to a managed runtime and you can account for calls but never refuse one. And there is a fourth option, still in plenty of production code today, where the client is a different shape — so instrument() politely hands it back untouched, no events are emitted, your budgets never bind, your gates never fire, your audit chain stays empty, and nothing anywhere says a word. The app works. That is the problem.

Microsoft retires that one on 26 August 2026.

What you’ll build

A Foundry call that is budgeted, gated, context-managed, compressed, replayable and audited — and, more usefully, a way to tell at a glance which of those you actually have.

flowchart TB
  Q{"who holds the<br/>model client?"}
  Q -->|"you — openai SDK<br/>at /openai/v1/"| A["full governance"]
  Q -->|"you — Foundry SDK<br/>get_openai_client()"| B["full governance<br/>zero Foundry-specific code"]
  Q -->|"you — azure-ai-inference"| C["NOTHING captured<br/>retired 2026-08-26"]
  Q -->|"Foundry Agent Service<br/>server-side loop"| D["otel.ingest()<br/>accounting + evidence,<br/>no pre-flight refusal"]

Everything below runs offline against a fake client with the Foundry response shape — no Azure account, no key — because instrument() identifies a client by its structure, not its class name.

Step 0 — where to start

git clone https://github.com/cendorhq/cendor-cookbook && cd cendor-cookbook && uv sync
uv run python recipes/providers/azure-foundry/main.py

git clone https://github.com/cendorhq/cendor-cookbook-js && cd cendor-cookbook-js
cd recipes/providers/azure-foundry && npm install && node index.mjs

Two placeholders appear below and the difference matters. my-chat-deployment is the recipe’s own default — what the offline sample literally prints, reproducible right now. <your-deployment> marks where a real deployment name was scrubbed from a live transcript. The model behind that real one was a gpt-5-mini, which is the fact that matters; the name itself is arbitrary, which is rather the point.

Step 1 — connect, and know which of the four you are in

The one Microsoft documents for new code

The plain openai client against the v1 GA route. No AzureOpenAI, no api-version:

from cendor.core import instrument
from openai import OpenAI

client = instrument(OpenAI(
    base_url=f"{AZURE_OPENAI_ENDPOINT}/openai/v1/",
    api_key=AZURE_OPENAI_API_KEY,
))

import { instrument } from '@cendor/core';
import OpenAI from 'openai';

const client = instrument(new OpenAI({
  baseURL: `${AZURE_OPENAI_ENDPOINT}/openai/v1/`,
  apiKey: AZURE_OPENAI_API_KEY,
}));

Three endpoint forms all work: <res>.openai.azure.com, <res>.services.ai.azure.com, and the project endpoint <res>.services.ai.azure.com/api/projects/<name>. ⚠️ A bare project endpoint with no /openai/v1/ answers 400 Missing required query parameter: api-version, which reads like “go back to the legacy client” and is not. Append the path.

And to be clear, since removing it from the docs made people ask: AzureOpenAI still works. Detection is structural and there is a regression test pinning it. It is gone from what we teach, not from what we capture.

The Foundry SDK, which is the interesting one

If your app already builds an AIProjectClient, you do not need a second client and you do not need anything Foundry-specific from Cendor:

from azure.ai.projects import AIProjectClient
from azure.identity import DefaultAzureCredential
from cendor.core import instrument

project = AIProjectClient(
    endpoint=AZURE_PROJECT_ENDPOINT,          # …/api/projects/<your-project>
    credential=DefaultAzureCredential(),      # Microsoft Entra ID, keyless
)
client = instrument(project.get_openai_client())

import { AIProjectClient } from '@azure/ai-projects';
import { DefaultAzureCredential } from '@azure/identity';
import { instrument } from '@cendor/core';

const project = new AIProjectClient(AZURE_PROJECT_ENDPOINT, new DefaultAzureCredential());
const client = instrument(project.getOpenAIClient());

get_openai_client() returns a plain OpenAI client pointed at <endpoint>/openai/v1. That is the whole trick: there is nothing for Cendor to learn, because by the time you have a client it is already a shape instrument() knows. Captured as provider="openai", with usage and cost, verified live in both languages.

Two things worth knowing here, because both get guessed wrong:

• It covers every model in the project, not just the OpenAI ones. DeepSeek, Grok, Llama, Mistral — the model’s maker never changes the client’s shape. (Pricing is a separate matter; see Step 3.)
• Do not go looking for a FoundryProvider or a [foundry] extra for this. There isn’t one, and the [foundry] extra that does exist is a different integration — the attribution adapter for the Agent Service, which is Step 5. azure-ai-projects is your dependency; Cendor never pulls it.

The one that captures nothing

# ⚠️ NOT a detection target. instrument() returns this untouched.
from azure.ai.inference import ChatCompletionsClient
client = instrument(ChatCompletionsClient(endpoint=…, credential=…))   # zero LLMCalls, ever

The same is true of the TypeScript Azure AI Inference client — it is the shape that is unrecognised, not the language — and the fix is identical in both: build the plain openai client against /openai/v1/ as at the top of this step.

The Azure AI Inference beta SDK — ChatCompletionsClient, the /models route — is a genuinely different client shape. instrument() does not recognise it, so it returns it unchanged and emits nothing. Every downstream control is therefore a no-op: no tokens counted, no cost, no budget that can bind, no gate that can fire, an audit chain with nothing in it. And the application behaves perfectly, which is what makes this worse than a crash.

There is no Cendor-side fix and none is planned. Microsoft deprecated this SDK and retires it on 26 August 2026; the GA /openai/v1 API is the replacement. Migrating the client is the fix, and it is the two-line change at the top of this step.

Step 2 — the seven libraries, on a Foundry client

This is the part that surprises people who expect an Azure integration to be a special case. Once instrument() has the client, nothing downstream knows or cares that this is Foundry. The deployment name flows through as the model id and every library behaves exactly as it does on OpenAI.

Five of the seven are in the providers/azure-foundry recipe:

from cendor.core import instrument, prices          # 1 the seam + the price table
from cendor.tokenguard import budget, BudgetExceeded # 2 pre-flight USD/token caps
from cendor.guardrails import install, rules         # 3 gate before the request leaves
from cendor import cassette                          # 4 record once, replay for $0
from cendor.acttrace import AuditLog, verify         # 5 a hash-chained evidence file

install([rules.keyword_deny(["ignore previous instructions"], action="block")])

with AuditLog(system="foundry-agent", risk_tier="limited", path=chain) as audit:
    with audit.decision(input="policy question", actor="agent") as dec:
        with budget(usd=1.00, on_exceed="block"):
            client.chat.completions.create(
                model=DEPLOYMENT,                    # your deployment name, not a model id
                messages=[{"role": "user", "content": "Is this request within policy?"}],
                max_tokens=64,
            )
        dec.record(model=DEPLOYMENT)

import { instrument, prices } from '@cendor/core';           // 1
import { withBudget, BudgetExceeded } from '@cendor/tokenguard'; // 2
import { install, rules } from '@cendor/guardrails';          // 3
import * as cassette from '@cendor/cassette';                 // 4
import { AuditLog, verify } from '@cendor/acttrace';          // 5

install([rules.keywordDeny(['ignore previous instructions'], { action: 'block' })]);

const audit = new AuditLog('foundry-agent', { riskTier: 'limited', path: chain });
await audit.decision(async (dec) => {
  await withBudget({ usd: 1.0, onExceed: 'block' }, async () => {
    await client.chat.completions.create({
      model: DEPLOYMENT,                                      // your deployment name
      messages: [{ role: 'user', content: 'Is this request within policy?' }],
      max_tokens: 64,
    });
  });
  dec.record({ model: DEPLOYMENT });
}, { input: 'policy question', actor: 'agent' });

Run it and each one reports for itself:

gate                  BLOCKED by keyword_deny - provider saw 0 call(s), $0
priced (registered)   BudgetExceeded: pre-flight block: projected $0.000672500 would exceed cap $0.00001 (model=my-chat-deployment)
priced, cap raised    provider=openai model=my-chat-deployment 1200 in / 400 out -> $0.007000000 (estimated)
cassette              replayed 1 call, 0 provider call(s), $0
verify()              True - ok: 5 entries, head 389a83f0dcff…

The injection never reached the deployment. The cap refused a call before it was sent. The same exchange replayed from a tape with zero provider calls. And the whole thing is on a hash-chained file that verify() re-walks offline — change one byte and it fails at that exact entry. (Entry count and verify() reproduce on your machine; the head hash will not, because entries carry timestamps.)

The other two — contextkit and squeeze — sit above the client, so they are provider-agnostic by construction. They are not in the provider recipe because it is a single-call sample, but the M365 agent recipe runs all seven against a client whose documented swap is exactly the Foundry one above:

from cendor.contextkit import Block, Context as CkContext   # 6 pack history into a token budget
from cendor.squeeze import compress                          # 7 shrink a block, reversibly

ctx = CkContext(budget_tokens=1200, model=DEPLOYMENT, reserve_output=256)
text, _handle = compress(blob, kind="prose", target_tokens=256, model=DEPLOYMENT)
messages = ctx.assemble()          # what fits, with a receipt of what was dropped

import { Block, Context as CkContext } from '@cendor/contextkit';   // 6
import { compress } from '@cendor/squeeze';                          // 7

const ctx = new CkContext({ budgetTokens: 1200, model: DEPLOYMENT, reserveOutput: 256 });
const [text] = compress(blob, { kind: 'prose', targetTokens: 256, model: DEPLOYMENT });
const messages = await ctx.assemble();   // note: assemble() is async in TypeScript

Both take model=DEPLOYMENT for token counting, which is the one place the deployment name matters to them — and the one place it can bite, since an unpriced id still counts tokens perfectly well.

Step 3 — the money, which is the one thing Foundry genuinely breaks

Everything above works on a deployment name. Cost does not, and it fails silently.

You do not call a model, you call a deployment. Your deployment is named prod-chat, or whatever your platform team picked, and that string is in no price table on earth. So:

unpriced (as shipped)  provider=openai model=my-chat-deployment 1200 in / 400 out -> None (estimated)
  warning: UnpricedModelWarning: tokenguard: no price for model 'my-chat-deployment', so the active
           USD budget (on_exceed='block') counts its calls as $0 and cannot enforce a USD cap on it.
  -> the $0.00001 USD cap did NOT bind: an unpriced call projects $0.

Read that first line carefully, because three of its four fields are right. provider=openai — detection worked. Exact token counts — capture worked. Then cost -> None.

None, not $0.00. Cendor does not know what your deployment costs, so it says so rather than inventing a zero that would look like a number and read like a fact. An unknown cost projects as $0, and $0 never exceeds a cap.

The fix is one line, and it is not a rate card. You know the thing the price table cannot: which model your deployment serves.

from cendor.core import prices

prices.register_deployment(DEPLOYMENT, like="gpt-4o")

import { prices } from '@cendor/core';

prices.registerDeployment(DEPLOYMENT, { like: 'gpt-4o' });

Four decisions in that line, each of which could have gone the lazy way:

• Nothing is inferred from the name. Guessing that prod-gpt4o-eastus means gpt-4o, resolving -preview/-latest aliases, was considered and rejected: a confidently wrong price is worse than an honest None.
• An unknown base raises. like="gpt-4p" is an UnknownModelError, not a shrug — otherwise the call to fix the silence would reproduce it.
• Every rate key is copied, not the two you would have typed. The recipe prints cached, input, output: cache reads bill at a discount on Azure and a hand-typed input=…, output=… silently drops that rate.
• Copy-at-registration, not a live alias. A later prices.refresh() that reprices gpt-4o does not reprice your deployment; call it again.

Hold the exact numbers instead — a fine-tune, a negotiated rate — prices.register_model_price(id, input=2.50, output=10.00) takes USD per 1M tokens. Prefer to fail closed? tokenguard.configure(on_unpriced="raise") refuses an unpriced call outright, and a token budget binds with no rate at all, because it counts tokens the provider does report.

⚠️ Two cases where like= will not save you. Most non-OpenAI Foundry models have no base to copy — the bundled snapshot carries no DeepSeek, Mistral or Phi rows, so like= raises and you want register_model_price with the rate card. And a model-router deployment cannot be priced by this method at all: the router picks a different model per request and bills at that model’s rates while reporting its own id, so no single registration is right for every call. Register the priciest member of the pool if a cap must bind — over-estimating is the safe direction — and never the cheapest.

The other half: azure now maps 104 models, not 23

register_deployment(dep, like=…) needs the base model to be in the table. Until recently, on Azure, that was a much shorter list than it looked.

The azure refresh source reads Microsoft’s own Retail Prices catalog. Its filter was productName eq 'Azure OpenAI' — and Microsoft moved the taxonomy: the meters now live under serviceName eq 'Foundry Models'. Measured on 2026-08-01, the old filter saw 462 of 1,526 eastus2 meters and mapped 23 models, missing GPT-5 entirely (353 meters) along with every Foundry family — DeepSeek, Grok, Mistral, Llama, Phi, Kimi, Qwen. That is exactly why gpt-5-mini came back unpriced in the 2026-07-31 audit.

Rewritten and re-measured in both languages, identically: 104 models, from 2026-07-01.

prices.refresh(source="azure", region="eastus2")   # Microsoft's own catalog, keyless
prices.register_deployment(DEPLOYMENT, like="gpt-5-mini")   # now resolves

Two things that fell out of doing it, both of which had been silently wrong:

• ⚠️ opt means OUTPUT in an Azure meter name — 141 rows use it. The parser looked only for outp/output, so every GPT-5.x family would have had an input rate and no output rate. It was proven by price, not by reading: GPT 5.1 inp Gl at 1.25/1M against GPT 5.1 opt Gl at 10.0/1M is GPT-5.1’s published $1.25/$10.
• ⚠️ A region is mandatory, not an optimisation. Unregioned, that query is ≥25,000 rows and still paging after 28.5 seconds — not something a library may do inside one refresh(). Hence region=, defaulting to eastus2.

⚠️ And the trade to know before you reach for it: refresh(source=…) REPLACES the table rather than merging into it. A first-party catalog is authoritative and narrow — refreshing onto azure gives you Microsoft’s meters and drops everything else. A bare prices.refresh() is the one that reconciles the cloud catalogs with the MIT aggregators into a single dated, per-row-provenanced table, and it is the default.

And now the deployment can say where its rate came from

The like= line above is an assertion — this deployment serves that model — so the useful question afterwards is whether it is still in effect. prices.explain(id) answers it without reading any source:

e = prices.explain(DEPLOYMENT)
print(e.summary())
# prod-gpt4o-eastus: cached=0.00000125 input=0.0000025 output=0.00001
#   — registered, from bundled as of 2026-08-02
e.registered    # True — one of MY registrations is in effect
e.row_source    # which source that specific rate came from
e.row_asof      # that source's own as-of date, not the day it was fetched

const e = prices.explain(DEPLOYMENT);
console.log(e.summary());
e.registered; // true — one of MY registrations is in effect
e.rowSource; //  which source that specific rate came from
e.rowAsof; //    that source's own as-of date, not the day it was fetched

how is the field to read: registered (your line), exact (the id is a table key), normalized (a wire-level id reduced to its base), or unpriced — and unpriced is an answer, not an exception. On a deployment that is the difference between a cap you can defend in a review and a number nobody can source.

The bundled snapshot carries that provenance because it is generated from the cendor-prices feed (opens in a new tab) rather than typed by hand — 849 rows, each with the source and date it came from, on a static file with no account and no server behind it. Hand-typing was not merely tedious: the previous 44 hand-fed rows had drifted, one of them 5× off every other source.

Step 4 — watch the difference

Cendor emits standard OpenTelemetry, so any OTLP backend shows this. The quickest is the self-hosted Cendor Monitor container:

docker run --rm -p 3000:3000 -p 4318:4318 -v cendor-monitor-data:/data \
  ghcr.io/cendorhq/cendor-monitor:0.15.0
export OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4318

⚠️ The environment variable on its own is not enough, and — fittingly for this post — the failure is silent. Cendor’s telemetry is mode=auto: it attaches once your app configures a global OpenTelemetry provider and emits nothing before that. Measured: with only the variable set, the recipe runs green and the console stays at 0 runs. CENDOR_DEBUG_TELEMETRY=1 prints which state you are in — armed (mode=auto); waiting for a provider versus provider=detected, emitter=attached. The bootstrap is the standard OTel one, with no Cendor-specific code in it:

from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import BatchSpanProcessor
from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter

provider = TracerProvider()
provider.add_span_processor(BatchSpanProcessor(OTLPSpanExporter()))
trace.set_tracer_provider(provider)      # the ONE global setup — your app owns it

import { NodeSDK } from '@opentelemetry/sdk-node';
import { OTLPTraceExporter } from '@opentelemetry/exporter-trace-otlp-http';

new NodeSDK({ traceExporter: new OTLPTraceExporter() }).start();  // the ONE global setup

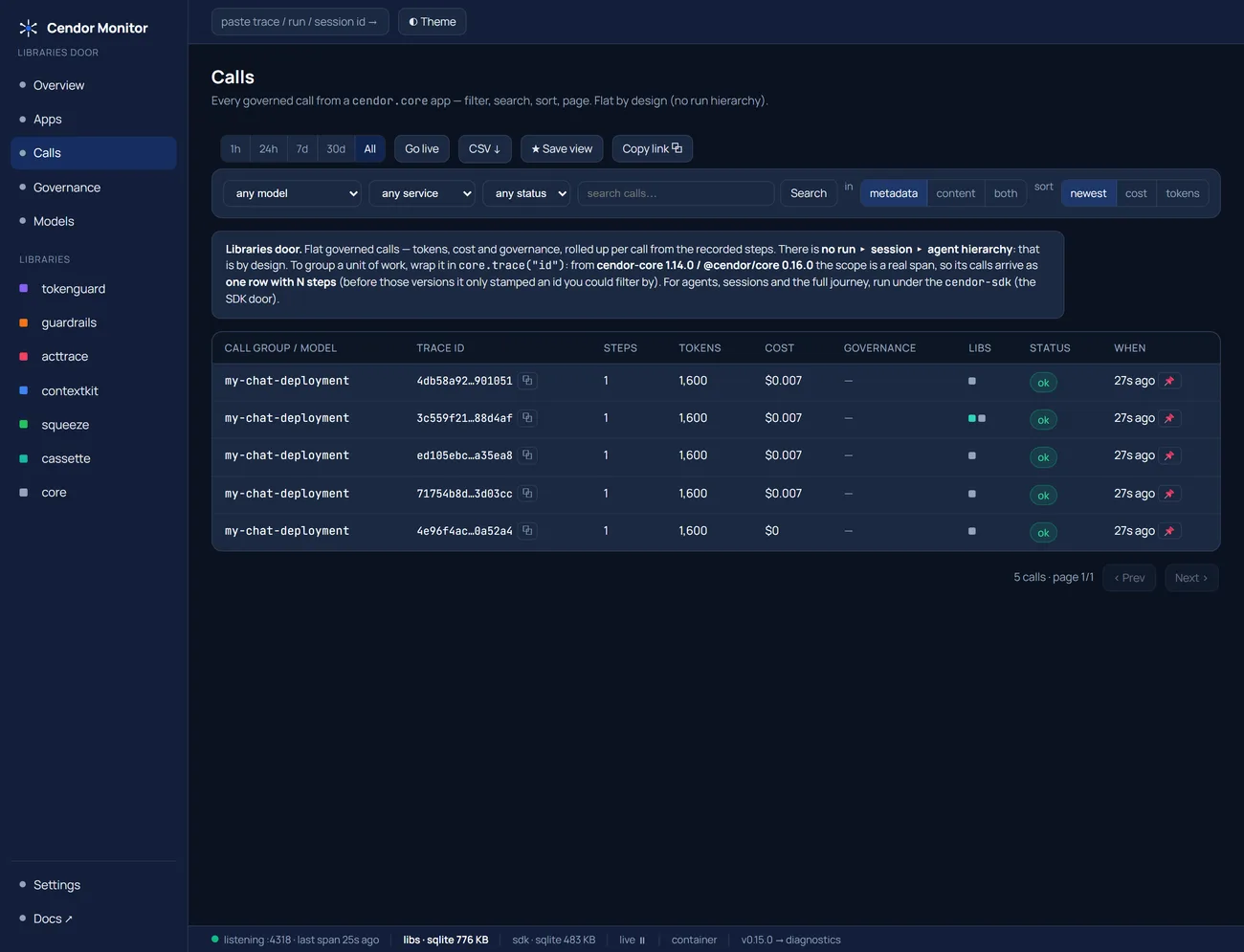

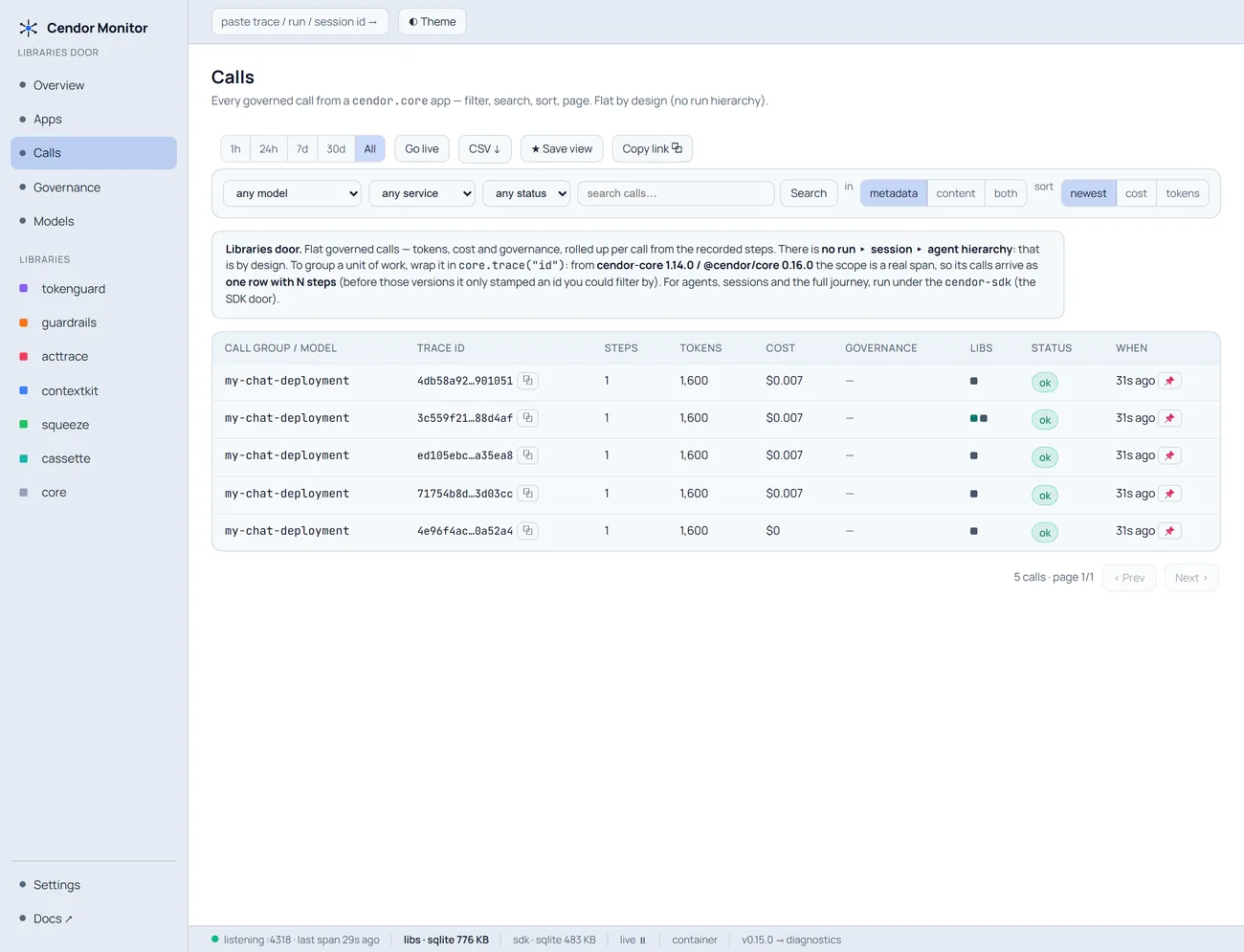

The Calls list then shows Step 3’s whole argument in one table — the same deployment, the same 1,600 tokens, five times:

Four rows at $0.007. One at $0 — the call made before registration. Nothing errored, nothing was flagged, and that row looks exactly as legitimate as the others. That is what an unenforced cap looks like from the outside: not a failure, just a smaller number.

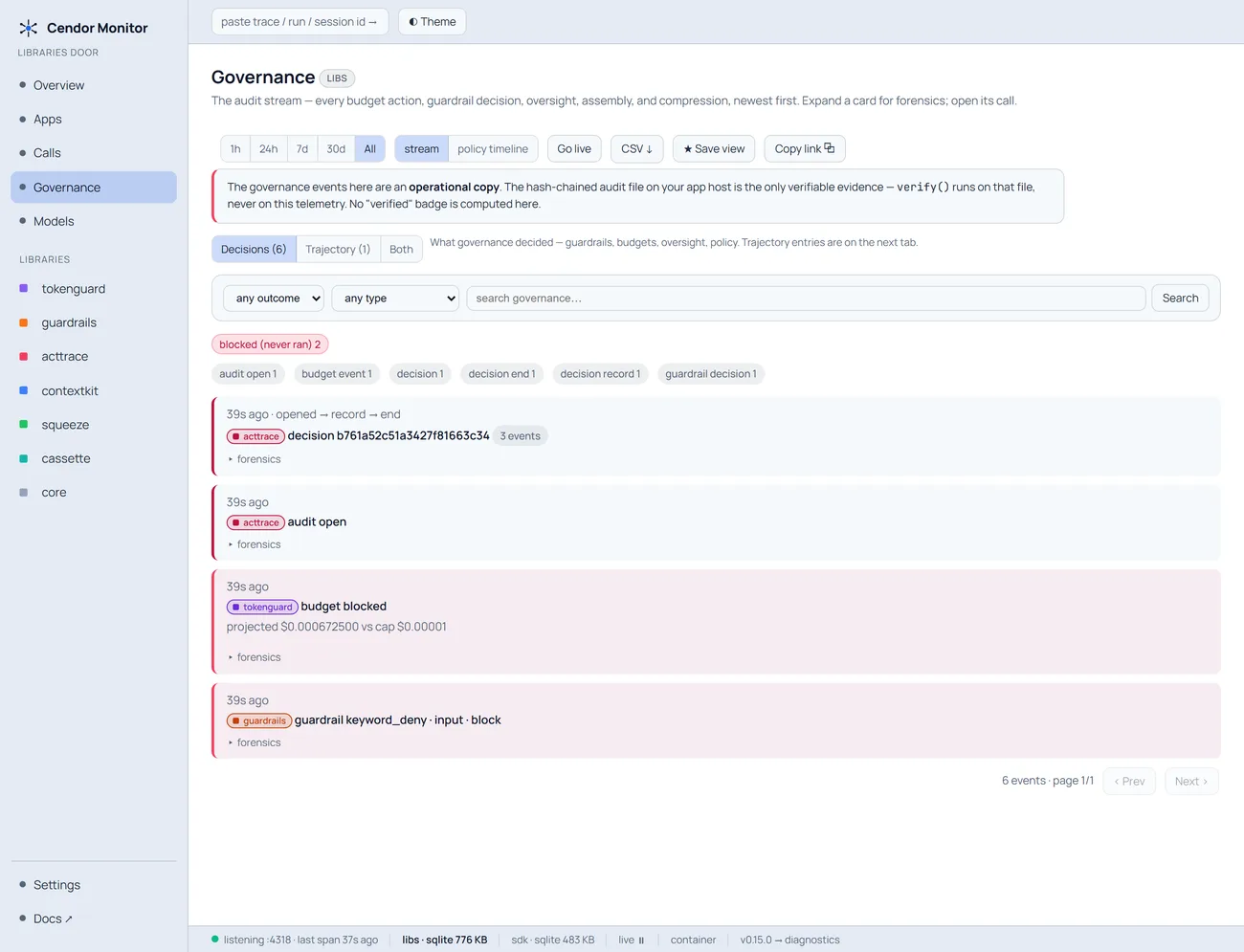

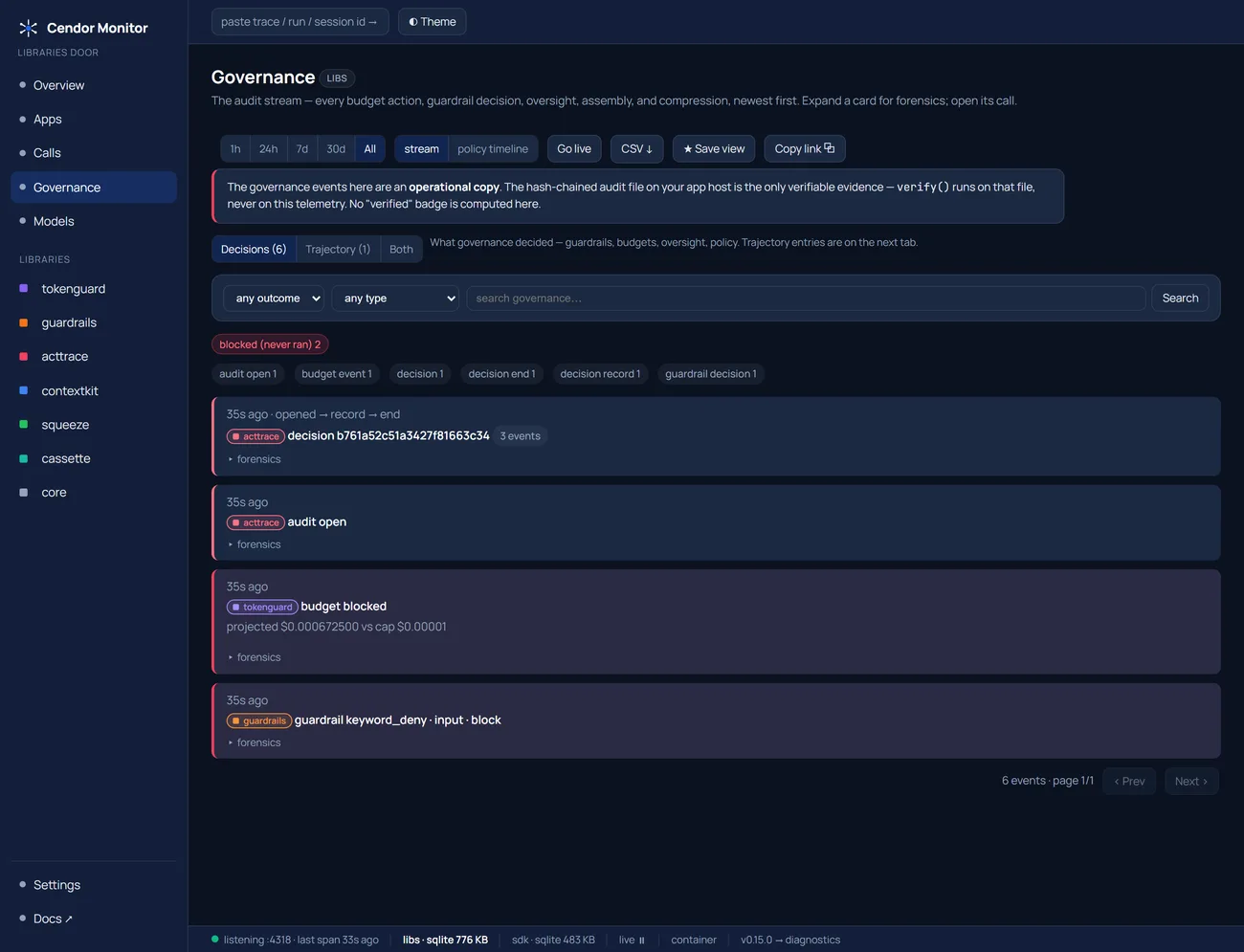

The governance stream shows the other half — the budget block that only exists once the deployment is priced:

budget blocked — projected $0.000672500 vs cap $0.00001. Before the registration that event was not merely missing from the screen; it never happened.

Note the banner at the top of that page. These events are an operational copy: the hash-chained audit file on your own host is the only verifiable evidence, and verify() runs on that file, never on this telemetry. The container is optional dev tooling — no library depends on it, and Cendor never operates a telemetry endpoint.

Step 5 — when you do not hold the client at all

Everything so far assumes the model call happens in your process. With Foundry’s Agent Service it does not: the loop runs server-side, so there is nothing to instrument(). Pretending otherwise would be the dishonest version of this post.

What you can do is ingest its telemetry. Foundry emits OpenTelemetry gen_ai.* spans, and otel.ingest() turns those attributes into the same normalized events, so budgets, spend attribution and the audit chain populate from calls your process never made:

from cendor.core import otel
from cendor.tokenguard import report, track

with track(feature="foundry_agent"):
    for span in spans:                      # your exporter's finished gen_ai.* spans
        otel.ingest(dict(span.attributes))

import { otel } from '@cendor/core';
import { track } from '@cendor/tokenguard';

await track({ feature: 'foundry_agent' }, async () => {
  for (const span of spans) otel.ingest({ ...span.attributes });
});

ingested 3 Foundry gen_ai.* spans (calls this process never made)
tokenguard: $0.018325000 across 3 calls
acttrace  : 3 llm_call entries, verify: True

A note on the recipes, so you are not surprised by what you click. otel.ingest() is exported in both languages, and the TypeScript snippet above is a real API — but the recipe demonstrating this ingest direction is Python only today. The TypeScript file under the same frameworks/azure-foundry-otel folder name covers the opposite direction: Cendor’s own governance exported to your OTel backend (an injected tracer and OTelMirror, one useAzureMonitor() call in production). Both are worth reading; they are just not the same recipe.

Be precise about what that buys you, because it is genuinely less than the four steps above: accounting and evidence after the fact, not enforcement. You did not make the call, so nothing local could have refused it. That is a property of the topology, not a gap in the library.

If you want agent attribution on top — which agent, which conversation — that is the [foundry] extra (observe_foundry_agents(client) / observeFoundryAgents(client)), and it is attribution-only for the same reason: the model runs server-side, so there are no per-step token or cost numbers to attach.

The two 400s that break every Azure sample nobody ran

While live-verifying the M365 agent recipe against a real deployment, the very first model call failed:

400 Unsupported parameter: 'max_tokens' is not supported with this model.
    Use 'max_completion_tokens' instead.

The reasoning families — the o-series and gpt-5-* — reject max_tokens outright. Worse, the host swallowed the 400 into the reply text, so the transcript read like an agent answering rather than an app failing.

This bites hardest on Azure for the reason this whole post keeps returning to: a deployment name is arbitrary. MODEL=prod-chat can have a gpt-5 behind it, so no name heuristic can be authoritative and the only reliable signal is the provider’s own error, which names the parameter it wants. The provider recipe defaults by name and honours an OUTPUT_CAP_PARAM override — deliberately, because a library-door sample should show you the trap. The agent SDK goes further: since cendor-sdk 1.21.0 it reads that 400 and re-issues once with the rename, so Agent(max_tokens=…) simply works. The repair costs nothing, because the rejected call never reached the model.

Then, with the cap accepted, the second surprise — same deployment, cap set to 48 for the demo:

tokens : 37 in / 48 out   (<your-deployment>)
reply  :

Forty-eight output tokens billed, and an empty answer. On a reasoning model the output cap covers reasoning tokens, so a small cap can be consumed entirely by thinking you never see. Every governance number in that run was correct. There was simply no text.

Honest limits

• The like= mapping is your input. Name the wrong base model and you get a confidently wrong cost rather than an honest missing one. Cendor checks the base exists; it cannot check it is what your deployment serves.
• A copied rate is a snapshot’s rate, on the date that table was cut (prices.snapshot_date(); refresh() pulls a newer one). On negotiated pricing, register the numbers.
• Model router has no correct registration, as above. Usage stays exact; USD attribution under model router is not supported today.
• Server-side agent tokens cannot be pre-flight blocked. Ingestion is accounting and evidence, not enforcement.
• An ingested span is only as complete as the runtime emitted. If the telemetry omits usage, no amount of downstream normalising invents it.
• acttrace produces evidence to support a compliance case — not a guarantee, and not legal advice.
• The screenshots are one seeded local session. Trace ids, timings and store size differ on yours; the $0.007-versus-$0 contrast is the part to compare.
• Keyless Entra ID auth is supported — a refreshing bearer-token provider as api_key on the v1 client, or hand AIProjectClient.get_openai_client() straight to instrument() as in Step 1. One cross-language difference: the Python package documents an api_key= override on get_openai_client(...), while the JS one always overwrites apiKey with its Entra token provider, so there authentication goes through the constructor’s credential.
• AzureOpenAI is still captured. Detection is structural, with a regression test pinning it.

Run it yourself

Every value comes from your environment — no endpoint, resource name, deployment name or key of anyone else’s appears anywhere in the repo, and CI has no secrets at all:

uv run python recipes/providers/azure-foundry/main.py     # offline, no key, what CI runs

export AZURE_OPENAI_ENDPOINT="https://<your-resource>.openai.azure.com"
export AZURE_OPENAI_API_KEY="<your-key>"
export AZURE_OPENAI_DEPLOYMENT="<your-deployment-name>"
RECORD=1 uv run --group apps python recipes/providers/azure-foundry/main.py

# …or record through the Foundry SDK instead of a hand-built client:
export AZURE_PROJECT_ENDPOINT="https://<your-resource>.services.ai.azure.com/api/projects/<project>"
RECORD=1 USE_FOUNDRY_SDK=1 uv run --group apps python recipes/providers/azure-foundry/main.py

• The provider recipe (five libraries, the money problem): providers/azure-foundry (opens in a new tab) (TypeScript (opens in a new tab))
• All seven libraries, on a client whose documented swap is the Foundry one above: agents/m365-custom-engine-py (opens in a new tab) (TypeScript (opens in a new tab))
• The Agent Service topology — ingesting gen_ai.* spans (Step 5), Python: frameworks/azure-foundry-otel (opens in a new tab)
• Exporting Cendor’s governance to your OTel backend — the same folder name in TypeScript, and a different subject: frameworks/azure-foundry-otel (opens in a new tab)
• Docs: cendor.ai/docs/providers · cendor.ai/docs/observability · cendor.ai/cookbook

If your agent runs inside Teams rather than beside it, the next post is that topology — and it opens on a governance control that looks like it is working and is not.
